Personal Projects

Woodstove Thermostat

I designed the mechanism, control software, and App to regulate a wood-burning stove in my home.

DIY Onewheel

I completely designed the mechanical and electrical designs and built and manufactured it myself. I also developed the software to work with the motor controller

I designed several PCBs for this project

Main Controller -

Schematic

Remote -

Schematic

Self-Balancing Robot

I developed the design, electronics, and software to allow this to balance on two wheels and navigate autonomously while avoiding obstacles on the Arduino (C++) platform using magnetic odometry, laser range finding, and a 9-Axis IMU. A Teensy 4.1 is used as the main microcontroller and interfaces with an Orange Pi Zero 2W running Ubuntu.

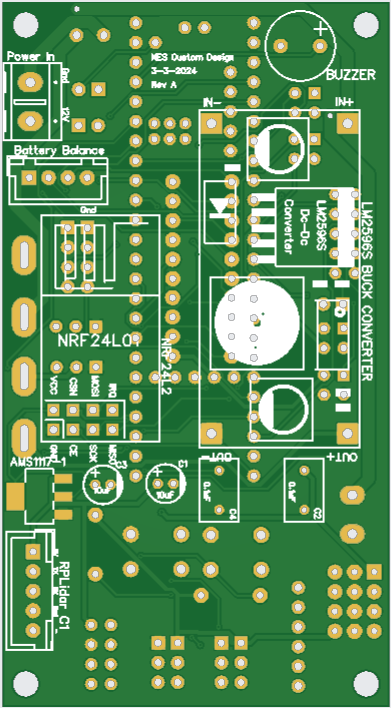

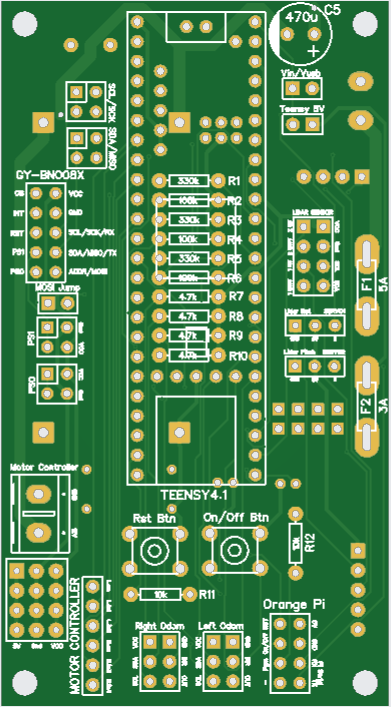

I designed a PCB to breakout all the connections to the Teensy 4.1.

Main Controller -

Schematic

Sun-Tracking Solar Panel

I designed the articulating 4-bar linkage and rotation axis to control the position of a solar panel mounted to the roof of my camper van. An arduino along with two motors, photoelectric sensors, potentiometers, and switches are used to autonomously track the position of the sun and orient the panel perpendicular to the sun's rays to maximize output power. I also created a wireless remote to be able to control the mode and to retract the panel for traveling. I've been using it for 2 years.

I designed and had custom PCBs made for this project.

Main Controller -

Schematic

Remote -

Schematic

Below is the custom 3D printed remote I designed and built for the solar tracker.
